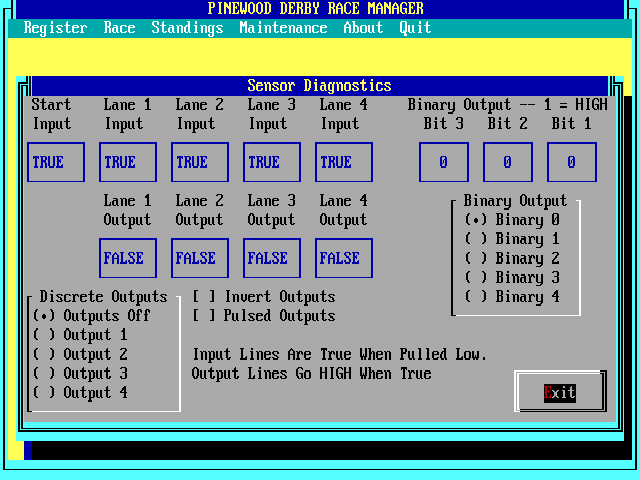

Pinewood Derby Diagnostics Screen


  • On Screen Diagnostics Allow You To Check Operation Of The Start Switch And Each Individual Lane Sensor
  • Output Lines Are Available For Optional Digital Lane Finish Display
  • Output Lines Can Be Manipulated From Diagnostics Screen For Testing
